Execution Of Turnkey Projects

SITE SELECTION

Selection of potential wind site and prediction of generation of the selected machines is based on the wind record by wind monitor sensor. Verification of evacuation facility, feasibility interlink line to connect wind farm, Road and route to receipt of the turbine material transport to site in all weather conditions, Erection of wind mast for calculating the wind potentiality in the site,

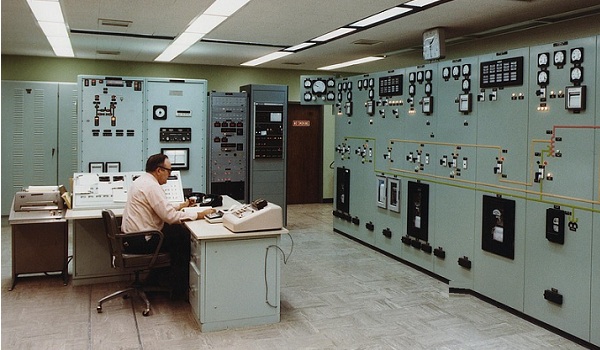

SUBSTATION

We are erecting substation for wind farms as turnkey basis or part supply basis for evacuation facilitation to wind park or the wind cluster site. We are erecting substation of Primary voltage capacity of 230kv, 110kv etc.We are preparing the drawing as matching to Indian Electricity Rules for getting approval from CEIG for execution.

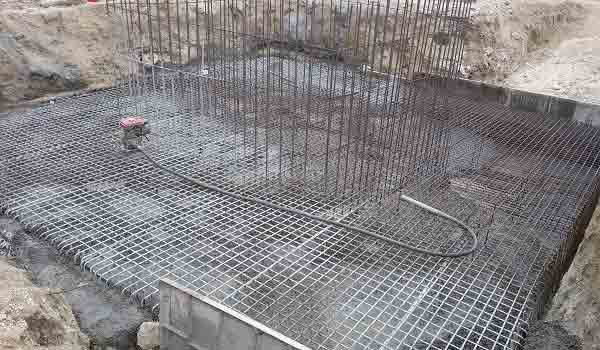

WINDMILL FOUNDATION

We are designing foundation based on the soil test report in the selected site area and constructing the foundation. We are deciding the concrete mix ratio based on the cement selection and as per the required strength of concrete. Doing the site marking, excavating, plain cement concreting, embed structure concreting , curing and cube testing.

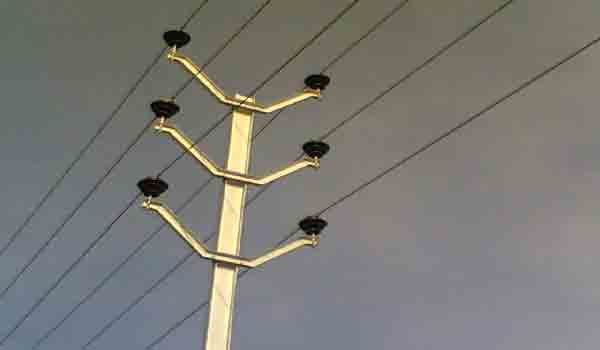

OVER HEAD LINE ERECTION

Route planning and erection of inter link line to connect wind farm nd substation of the specific voltage system.Erecting line as per the standard of Indian Electricity Rules of clearances. Using the reputed make of insulators, fittings, conductors, poles etc for the construction of lines.

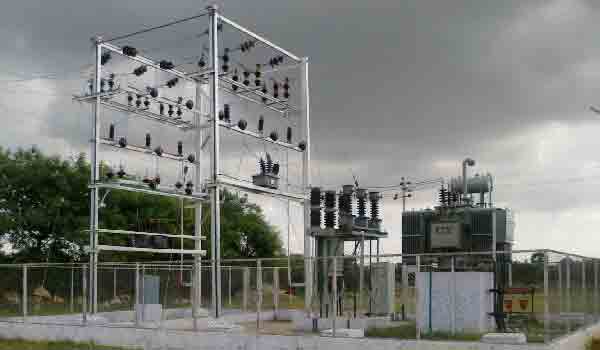

UNITSUB STATION

Design and planning of Unit substation suitable to wind turbine capacity and the system voltage. Designing of better earthing system for the failure free and protected system of earth designing to the Turbine. Cable and circuit breaker selection, supply and erection

CRANE SERVICE

We are selecting the crane suitability for the Turbine erection split and credence each lift.We are also Deploying the suitable cranes through our Tie up Crane Operators for erection, supporting, loading, unloading for Turbine and accessories.

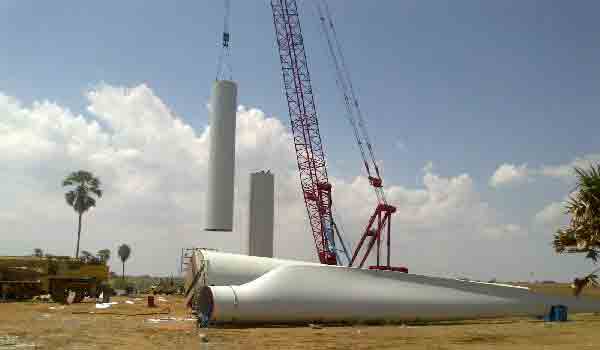

TURBINE ERECTION

We are selecting the crane suitability for the Turbine erection split and credence each lift.We are also Deploying the suitable cranes through our Tie up Crane Operators for erection, supporting, loading, unloading for Turbine and accessories.

APPROVALS

We have got certified by the Chief Electrical Inspectorate of TamilNadu to execute all the High Tension Electrical works for Windmills and all Industries. Coordinating to Carrying out Rule 63 Inspection for newly erected projects and Rule 46 Inspection for the periodical maintenance of the HT installtion. Authorised to submit completion report to CEIG and Obtaining the safety certificate for the new installation. Liaisoning with State Electricity Board for Obtaining NOC for the Wind Turbine Installation, Followup for commissioning after Installation.

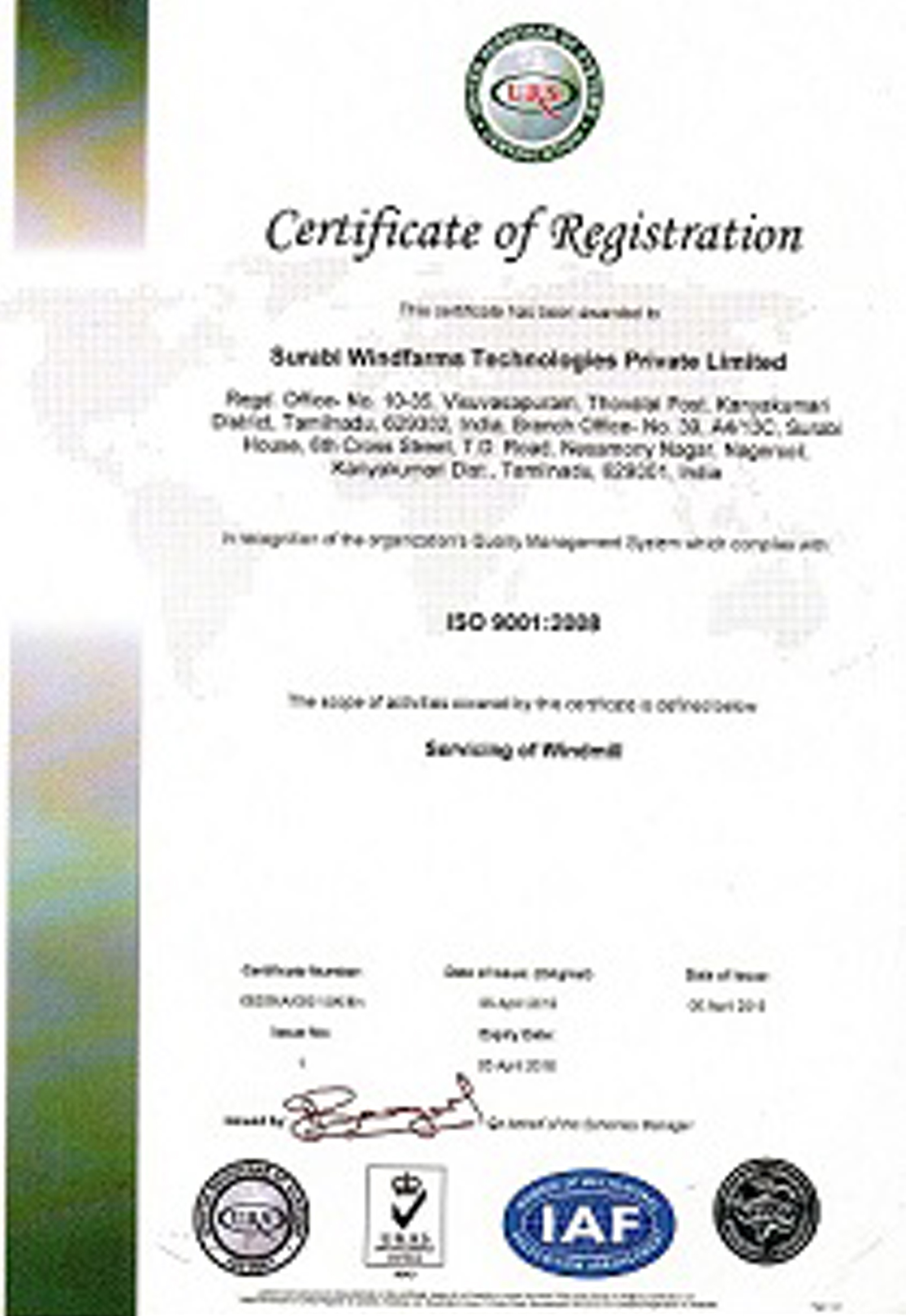

CERTIFICATIONS
